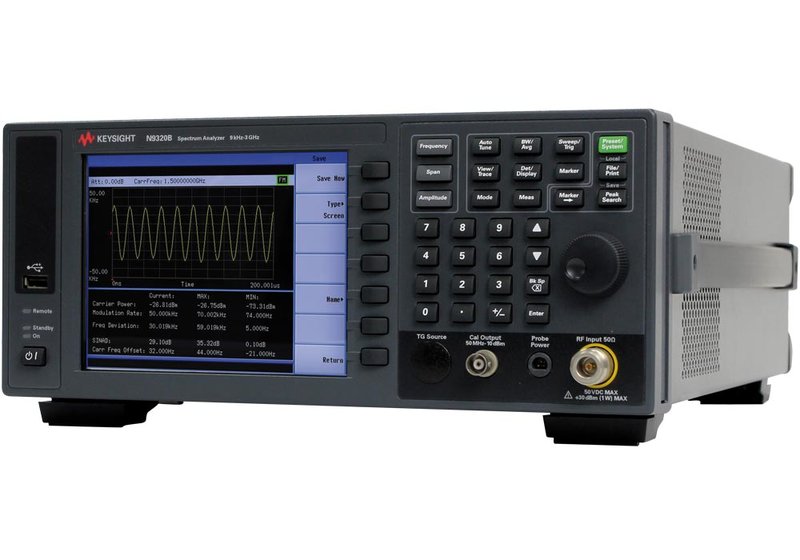

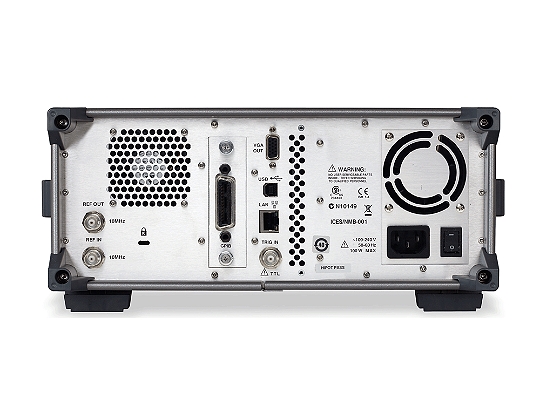

N9322C 스펙트럼 분석기

주파수 범위	9 kHz to 7 GHz
DANL	-152 dBm
TOI	+15 dBm
Phase noise	-115 dBc/Hz
분석 대역폭	1 MHz

데이터시트

설명 Description
사양 Specification
옵션 Option

N9322C 스펙트럼 분석기 개요

– 9 kHz ~ 7 GHz 주파수 범위
– ± 0.3 dB 절대 진폭 정확도
– 10Hz ~ 3MHz 해상도 대역폭
– –152 dBm 표시 평균 노이즈 레벨 (1GHz, 10Hz 최소 RBW에서 주파수)
– –90 dBc / Hz 위상 노이즈
– 1 dB 간격으로 50 dB 입력 감쇠기
– +11 dBm TOI
– 2ms ~ 1000s 스위프 시간 (스팬 ≥ 100Hz)
– 7GHz 추적 생성기 및 반사 옵션

일반 사양
– 5 ~ 45 ° C 작동 온도
– 25W 공칭 전력 소비
– 치수 (H x W x D) : 132.5 x 320 x 400mm, (5.2 x 12.6 x 15.7 인치)
– 무게 : 7.6 kg
– 1 년 교정주기

N9320B, N9322C 스펙트럼 분석기 사양

Model	N9320B	N9322C
Frequency Range	9 kHz to 3 GHz	9 kHz to 7 GHz
Phase noise	- 90 dBc/Hz	–90 dBc/Hz
Maximum third order dynamic range	76 dB	83 dB
Displayed average noise level	-145 dBm	-152 dBm
Standard attenuator range	70 dB, in 1 dB steps	50 dB, in 1 dB steps
Amplitude accuracy	± 0.5 dB	± 0.6 dB

N9320B, N9322C 스펙트럼 분석기 사양

Model	N9320B	N9322C
Frequency Range	9 kHz to 3 GHz	9 kHz to 7 GHz
Phase noise	- 90 dBc/Hz	–90 dBc/Hz
Maximum third order dynamic range	76 dB	83 dB
Displayed average noise level	-145 dBm	-152 dBm
Standard attenuator range	70 dB, in 1 dB steps	50 dB, in 1 dB steps
Amplitude accuracy	± 0.5 dB	± 0.6 dB

옵션

자세히 알아보기: 구성 가이드 보기

Accessories
N9322C-1CM	Rackmount Flange Kit
N9322C-1CP	Rackmount Flange and Front Handle Kit
N9322C-1TC	Hard Transit Case

Regional Distribution Center
N9322C-PLG	Continental European Power Cord - for EU distribution with multiple power cord standards

Documentation
N9322C-AB2	Printed user's guide, Simplified Chinese
N9322C-ABA	Printed user's guide, English
N9322C-ABJ	Printed user's guide, Japanese

Modulation analysis
N9322C-DMA	ASK/FSK Modulation Analysis
N9322C-AMA	AM/FM Modulation Analysis

Sweep option
N9322C-TMG	Time-Gated Spectrum Analysis

Pre-amplifier
N9322C-P07	Preamplifier, 7 GHz

Monitoring options
N9322C-SCN	Channel Scanner
N9322C-PWP	USB Peak and Average Power Sensor Support (U2020/U2040 X-Series)
N9322C-PWM	USB Average Power Sensor Support (U2000 Series)
N9322C-MNT	Spectrum Monitor with Spectrogram Record and Playback

Connectivity option
N9322C-G01	GPIB Interface

Performance options
N9322C-BB1	Baseband Input
N9322C-PFR	Precision Frequency Reference

Generator options
N9322C-RM7	Reflection Measurement (requires Option TG7)
N9322C-TG7	Tracking Generator, 7 GHz

Calibration documentation
N9322C-UK6	Commercial Calibration Certificate with Test Data

Security options
N9322C-SEC	Security Features

Test automation class
N9322C-TPN	Task Planner for Test Automation

EMC analysis
N9322C-EMC	EMI filters and quasi-peak detector
