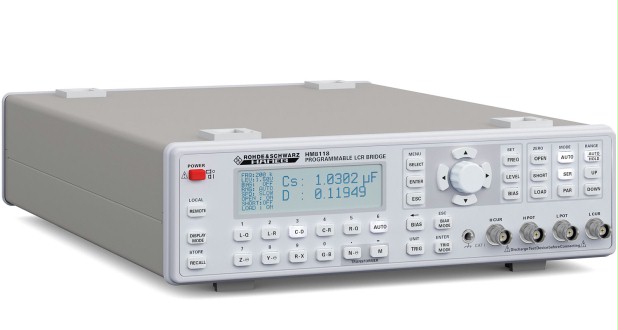

HM8118
| 주파수 범위 | 20 Hz to 200 kHz |
|---|---|
| 정확도 | 0.05 % |
| 측정항목 | L, C, R, |Z|, X, |Y|, G, B, D, Q, Φ, ∆, M, N |
| 측정속도 | up to 12 values/s |
| 인터페이스 | USB, RS-232 |
Key facts
- Measurement range: 20 Hz to 200 kHz (69 steps)
- Basic accuracy: 0.05 %
- Measurement rate: up to 12 values/s
- Measurement functions: L, C, R, |Z|, X, |Y|, G, B, D, Q, Φ, ∆, M, N
- Transformer measurement: mutual inductance and ratio
- Internal: 0 V to 5 V/0 mA to 200 mA (resolution: 10 mV/1 mA)
- External: 0 V to 40 V (bias voltage only)
- RS-232/USB dual interface for remote control, optionally IEEE-488 (GPIB)
- Fanless design
Key facts
- Measurement range: 20 Hz to 200 kHz (69 steps)
- Basic accuracy: 0.05 %
- Measurement rate: up to 12 values/s
- Measurement functions: L, C, R, |Z|, X, |Y|, G, B, D, Q, Φ, ∆, M, N
- Transformer measurement: mutual inductance and ratio
- Internal: 0 V to 5 V/0 mA to 200 mA (resolution: 10 mV/1 mA)
- External: 0 V to 40 V (bias voltage only)
- RS-232/USB dual interface for remote control, optionally IEEE-488 (GPIB)
- Fanless design
Hardware options
Accessories
